FN-4668W

Name: FN-4668W - Filtronetics
SKU: FN-4668W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4668W

Frequency

21.4 MHz

Insertion Loss

6.5 dB Max

Pass Bandwidth

150 kHz Min / 160 kHz Max // 3dB Max

Stop Bandwidth

330 KHz / 60 dB Min

Ripple

1.5 dB Max

Case

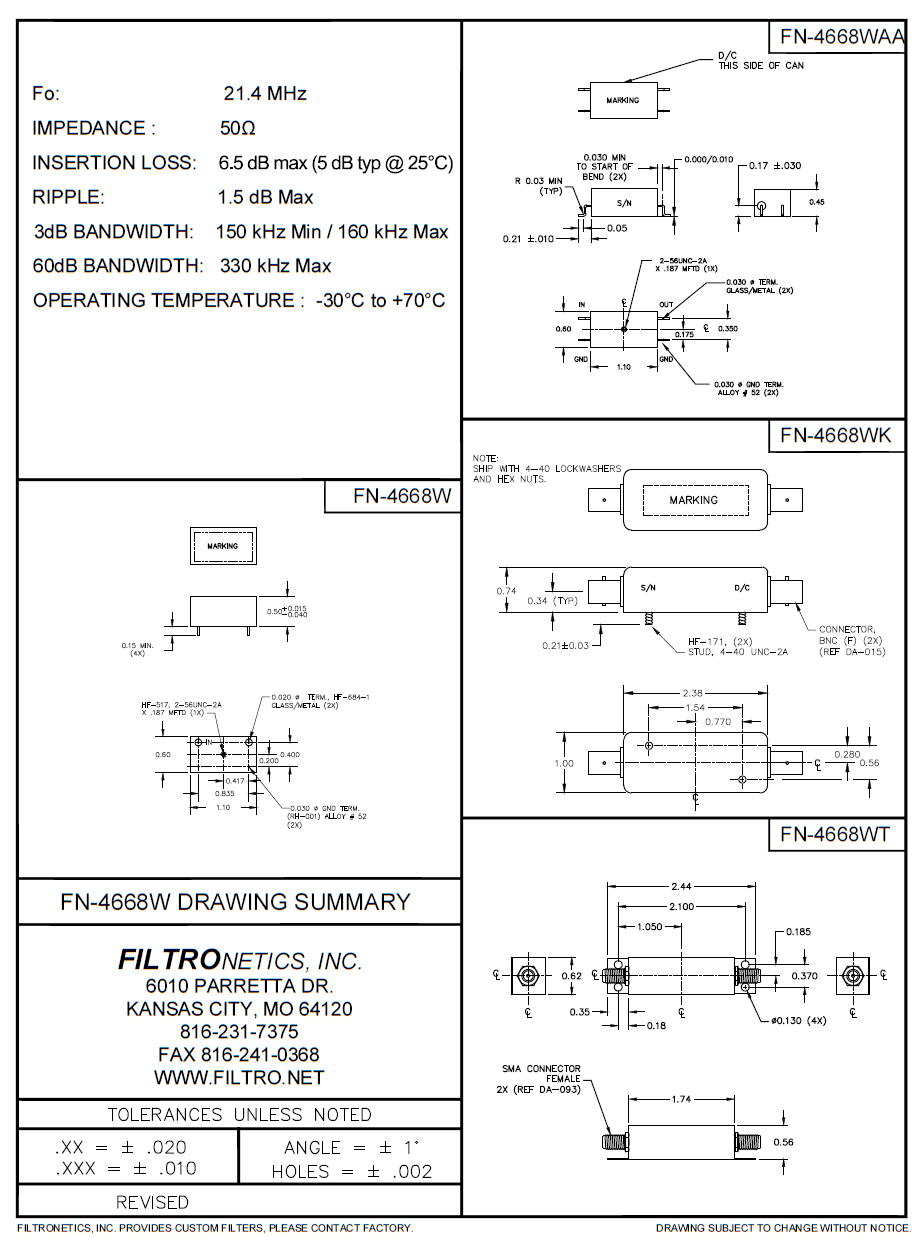

Various (download the pdf sheet for details)

Operating Temperature

-30 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
