FN-4356W

Name: FN-4356W - Filtronetics
SKU: FN-4356W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4356W

Frequency

165.7750 MHz

Insertion Loss

8.0 dB Max

Pass Bandwidth

±3.15 kHz / 3.0 dB Max

Stop Bandwidth

±25 kHz / 30 dB Min // ±50 kHz / 50 dB Min

Ripple

2.0 dB Max

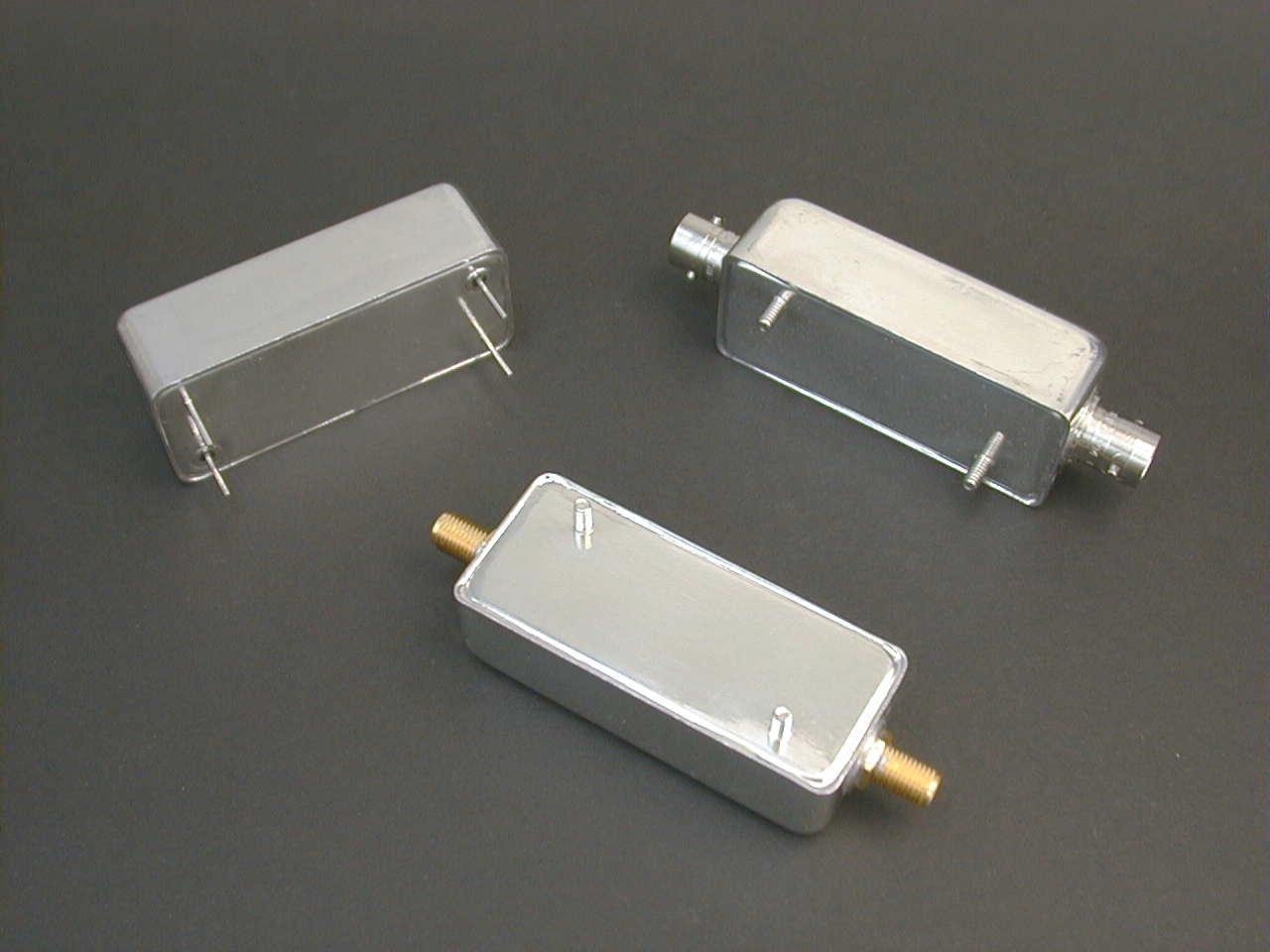

Case

Various (download the pdf sheet for details)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
