FN-3857W

Name: FN-3857W - Filtronetics
SKU: FN-3857W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-3857W

Frequency

100 MHz

Insertion Loss

4.0 dB Max

Pass Bandwidth

25 KHz / 3 dB Max

Stop Bandwidth

170 KHz /60 dBc Min

Ripple

1.0 dB Max

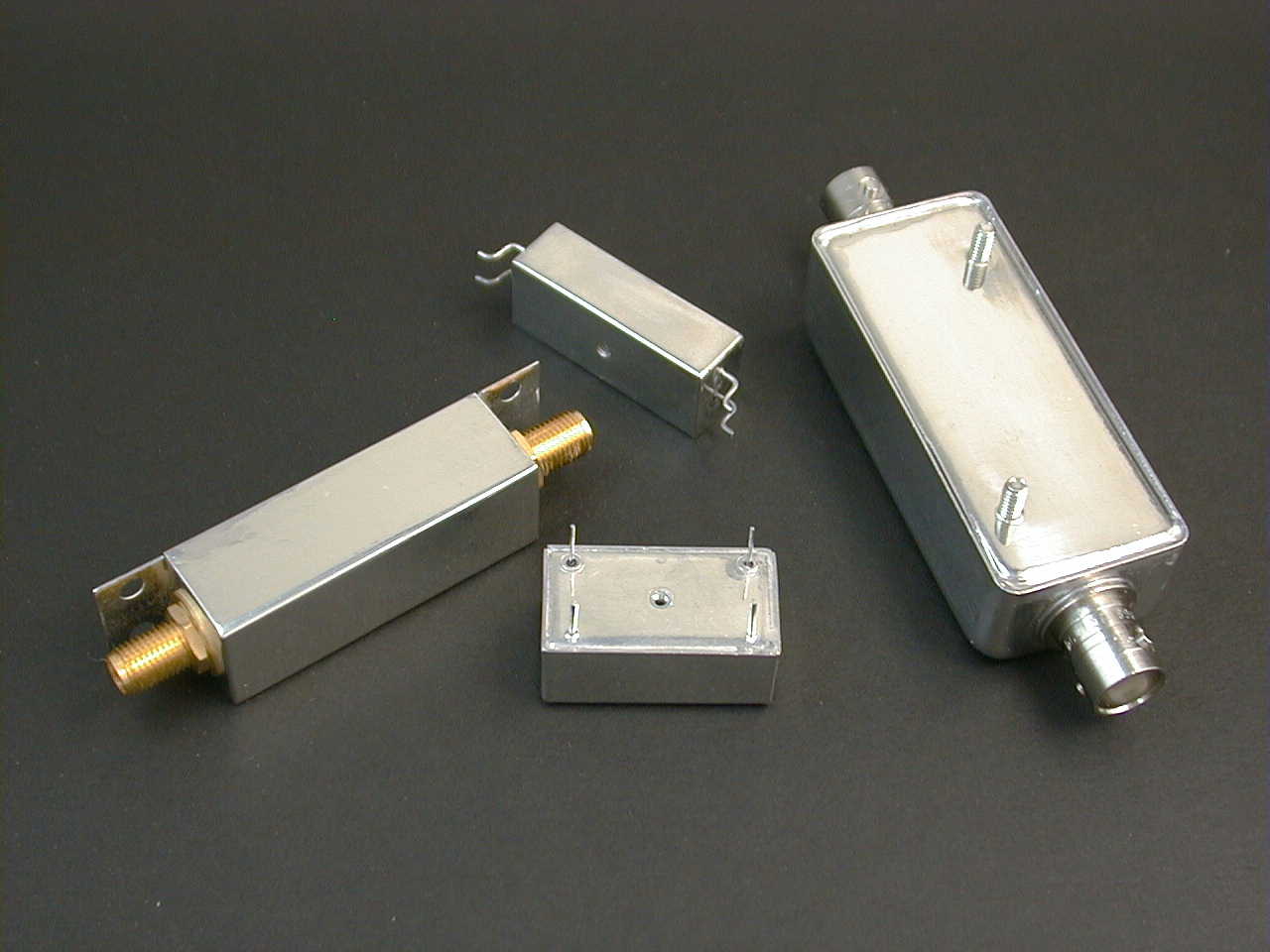

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +75 °C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
