FN-382W

Name: FN-382W - Filtronetics
SKU: FN-382W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-382W

Frequency

455 KHz

Insertion Loss

11.5dB ±1 dB

Pass Bandwidth

'-600~+600 Hz / 3.0 dB Max

Stop Bandwidth

±1500Hz / 62 dB Min

Ripple

3.0 dB Max

Case

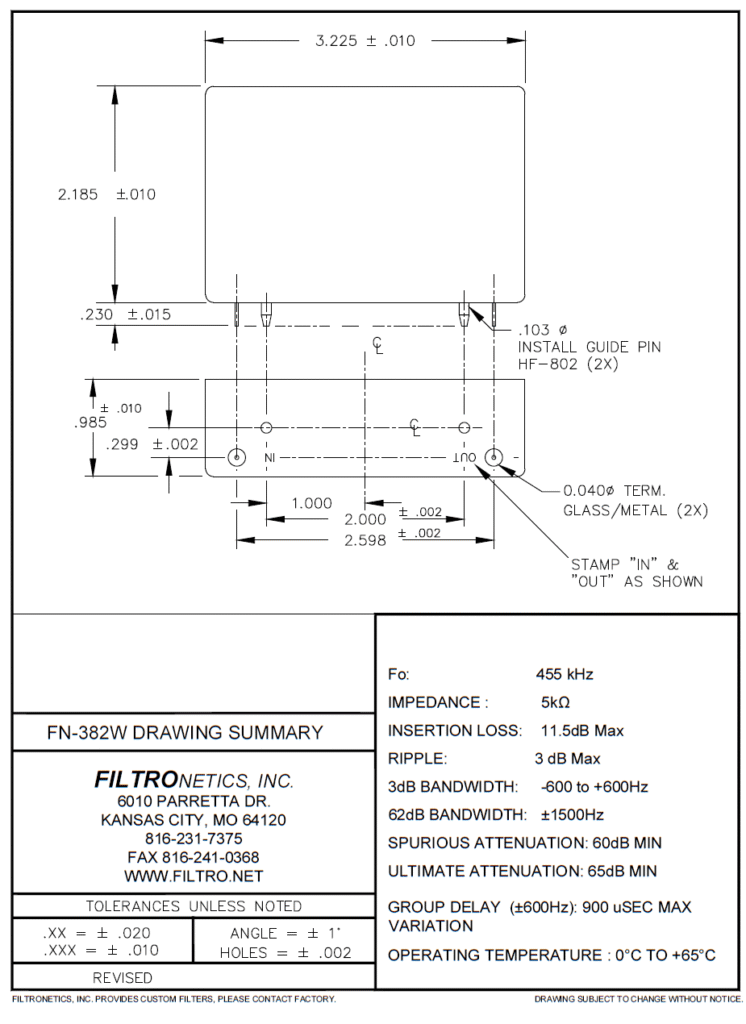

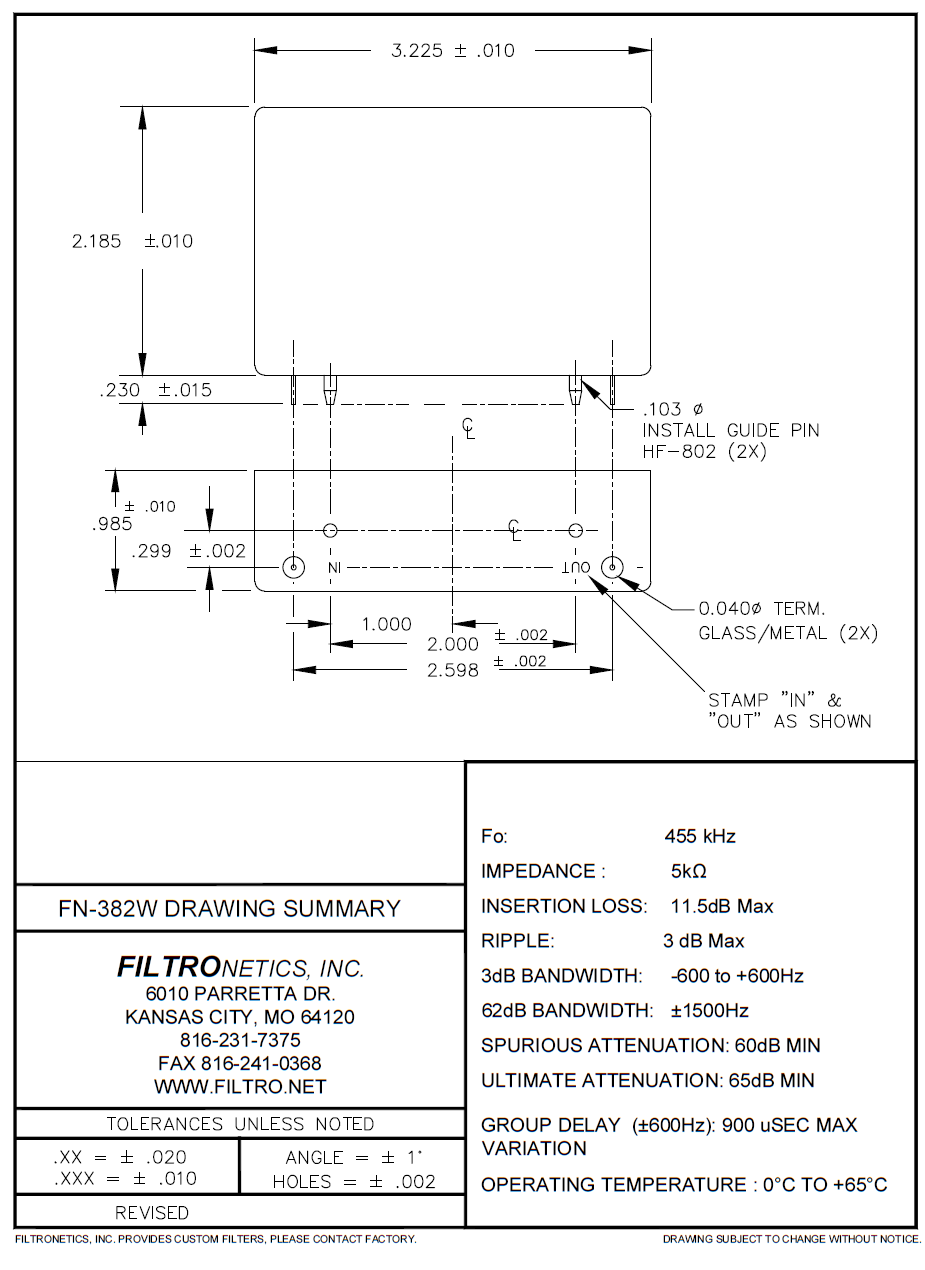

Various (download the pdf sheet for details)

Operating Temperature

0 to +65°C

Poles

Impedance

5000 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
