FN-3196W

Name: FN-3196W - Filtronetics
SKU: FN-3196W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-3196W

Frequency

160 MHz

Insertion Loss

5.0 dB Max

Pass Bandwidth

±80 KHz / 3 dB Max

Stop Bandwidth

320 KHz / 40 dB Min // 640 KHz / 60 dB Min

Ripple

1.0 dB Max

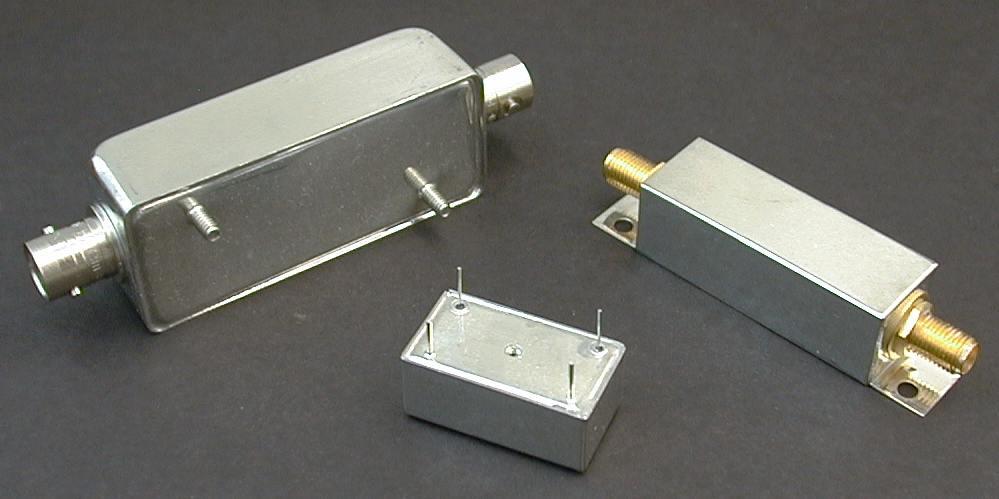

Case

Various (download the pdf sheet for details)

Operating Temperature

-20 to +80°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
