FN-2758W

Name: FN-2758W - Filtronetics
SKU: FN-2758W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2758W

Frequency

70 MHz

Insertion Loss

8.0 dB Max

Pass Bandwidth

±200 KHz / 3 dB Max

Stop Bandwidth

'-650 KHz + 800 KHz / 60dB Min

Ripple

0.75 dB Max

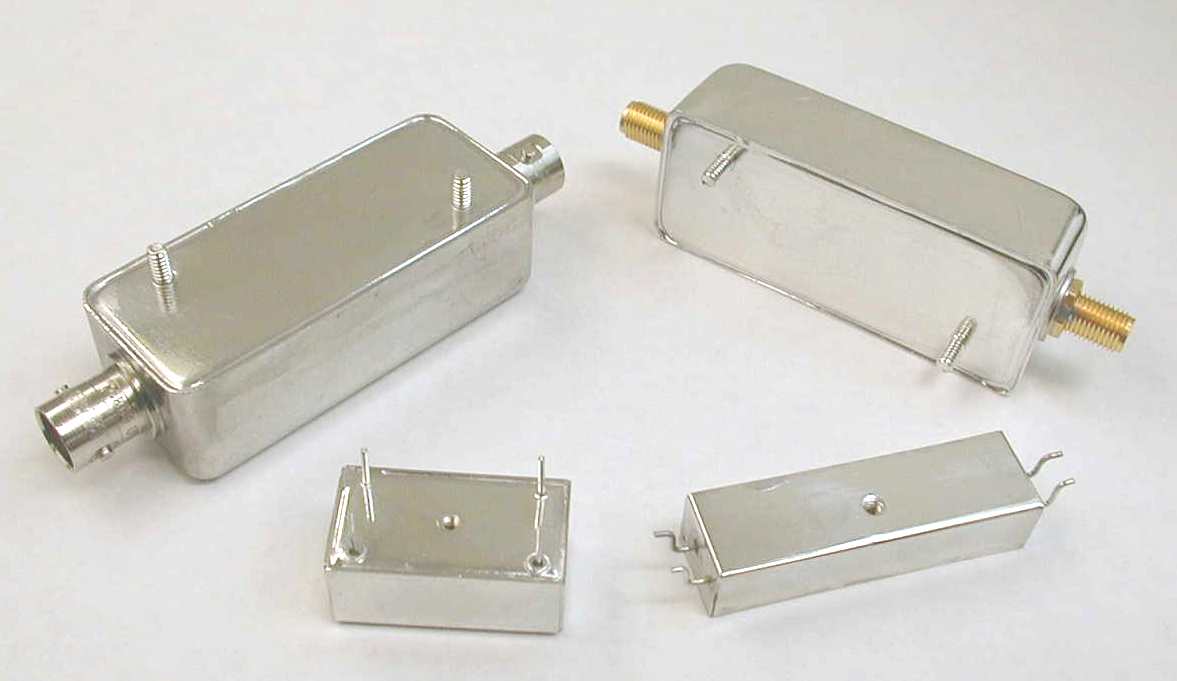

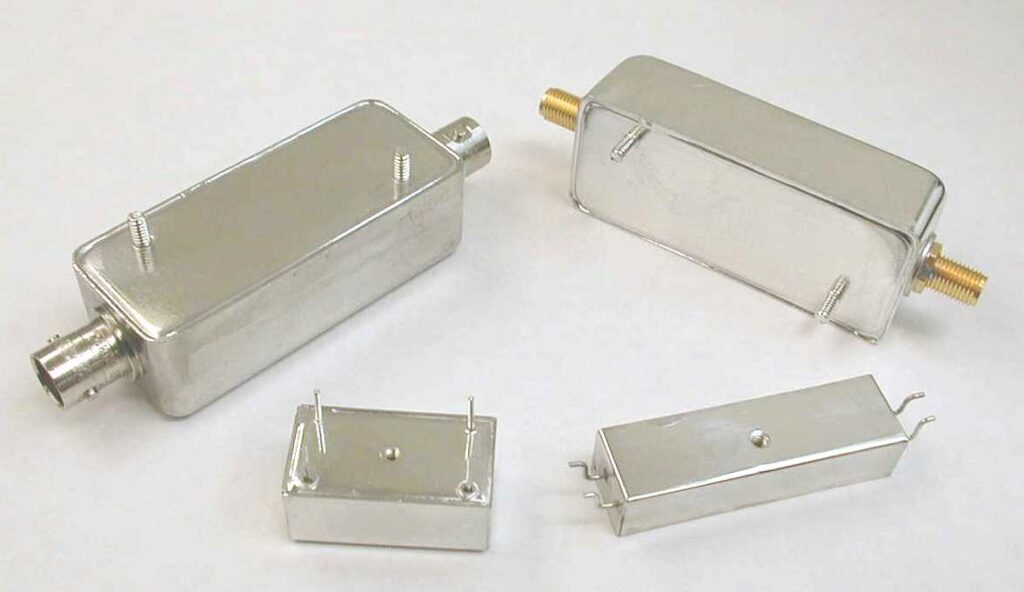

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

75 ohms ( 50 available)

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
