FN-2337W

Name: FN-2337W - Filtronetics
SKU: FN-2337W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2337W

Frequency

117.025 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

6 MHz / 3 dB Max

Stop Bandwidth

88 MHz / 60 dB Min

Ripple

0.1 dB Max

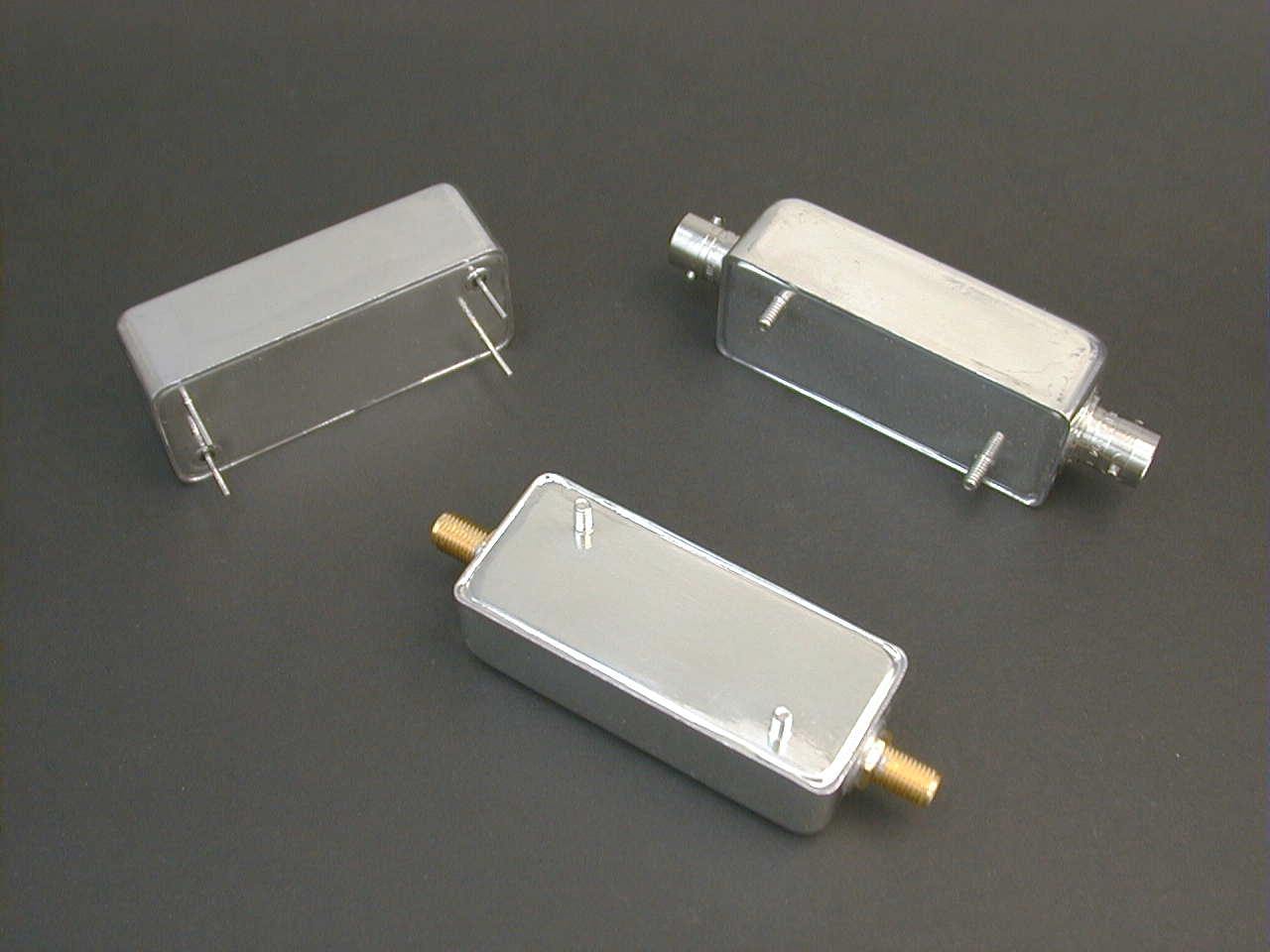

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +70°C

Poles

Impedance

75 ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
