FN-2231W

Name: FN-2231W - Filtronetics
SKU: FN-2231W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2231W

Frequency

467.1 MHz

Insertion Loss

8.0 dB Max

Pass Bandwidth

100 KHz / 3 dB Max

Stop Bandwidth

800 KHz / 30 dB Min

Ripple

0.1 dB Max

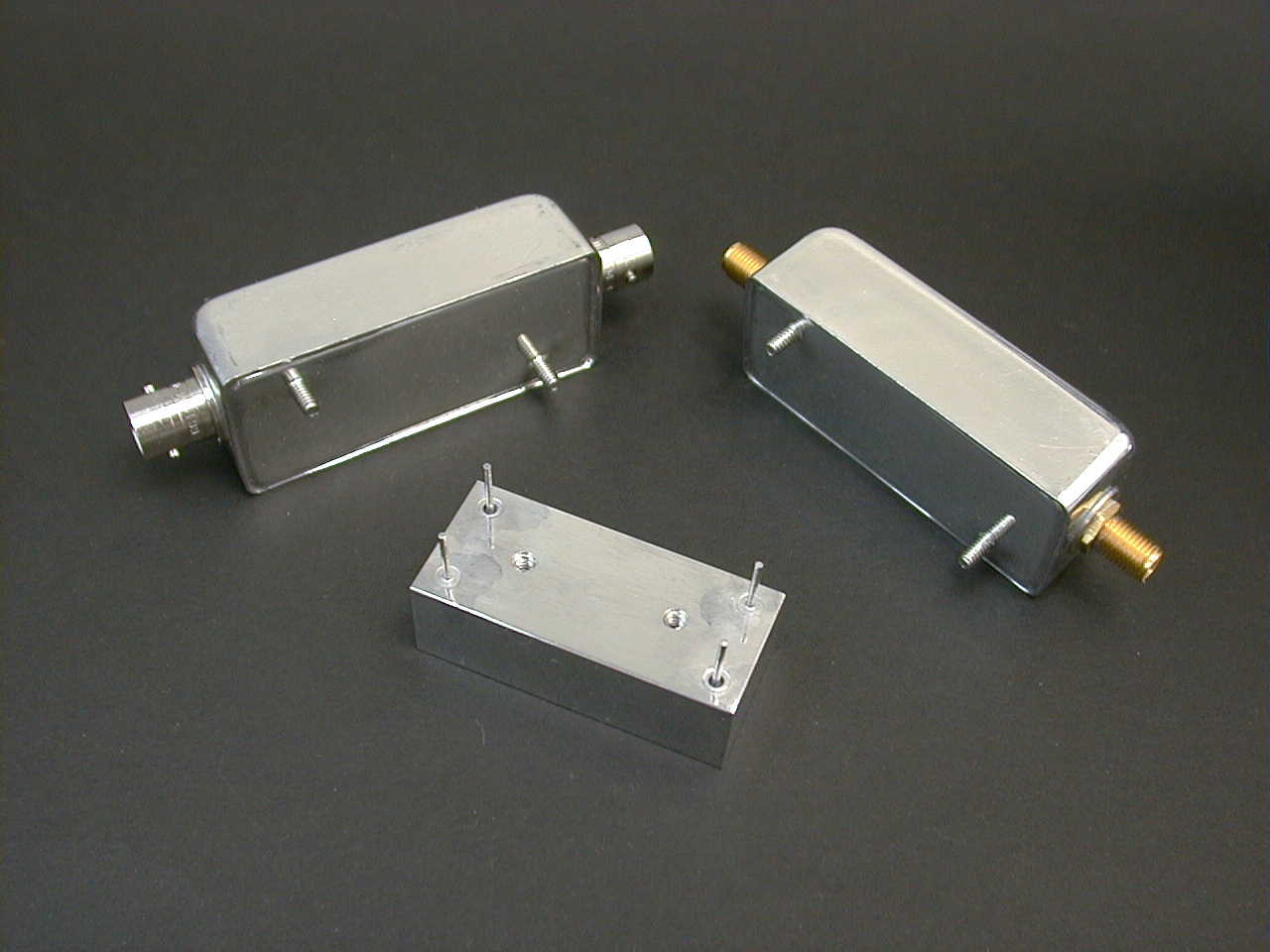

Case

Various (download the pdf sheet for details)

Operating Temperature

+20 to +30°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
