FN-2063W

Name: FN-2063W - Filtronetics
SKU: FN-2063W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2063W

Frequency

70 MHz

Insertion Loss

5.5 dB Max

Pass Bandwidth

3.5 KHz / 3 dB Max

Stop Bandwidth

12 KHz / 30 dB Min // 25 KHz / 60 dB Min

Ripple

0.5 dB Max

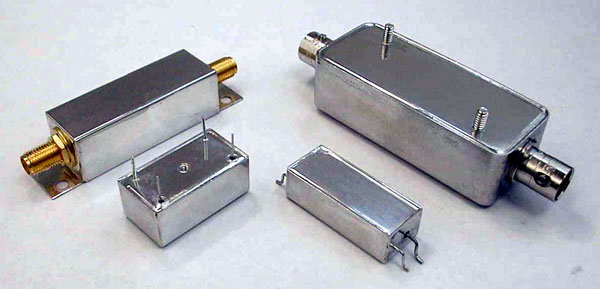

Case

Various (download the pdf sheet for details)

Operating Temperature

0 to +50°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
