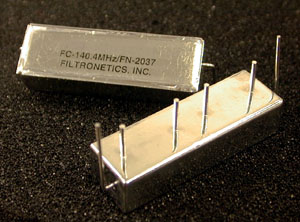

FN-2037W

Name: FN-2037W - Filtronetics
SKU: FN-2037W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-2037W

Frequency

140.4 MHz

Insertion Loss

5.0 dB Max

Pass Bandwidth

±20 KHz / 3 dB Max

Stop Bandwidth

150 KHz / 60 dB Min

Ripple

1 dB Max

Case

1.60 x 0.50 x 0.375 in (Thru hole)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
