FN-1994W

Name: FN-1994W - Filtronetics
SKU: FN-1994W
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FN-1994W

Frequency

Insertion Loss

0.2 dB Max

Pass Bandwidth

Stop Bandwidth

580 MHz to 800 MHz / 20 dB // 800 MHz to 1.2 GHz / 40 dB

Ripple

0.2 dB Max

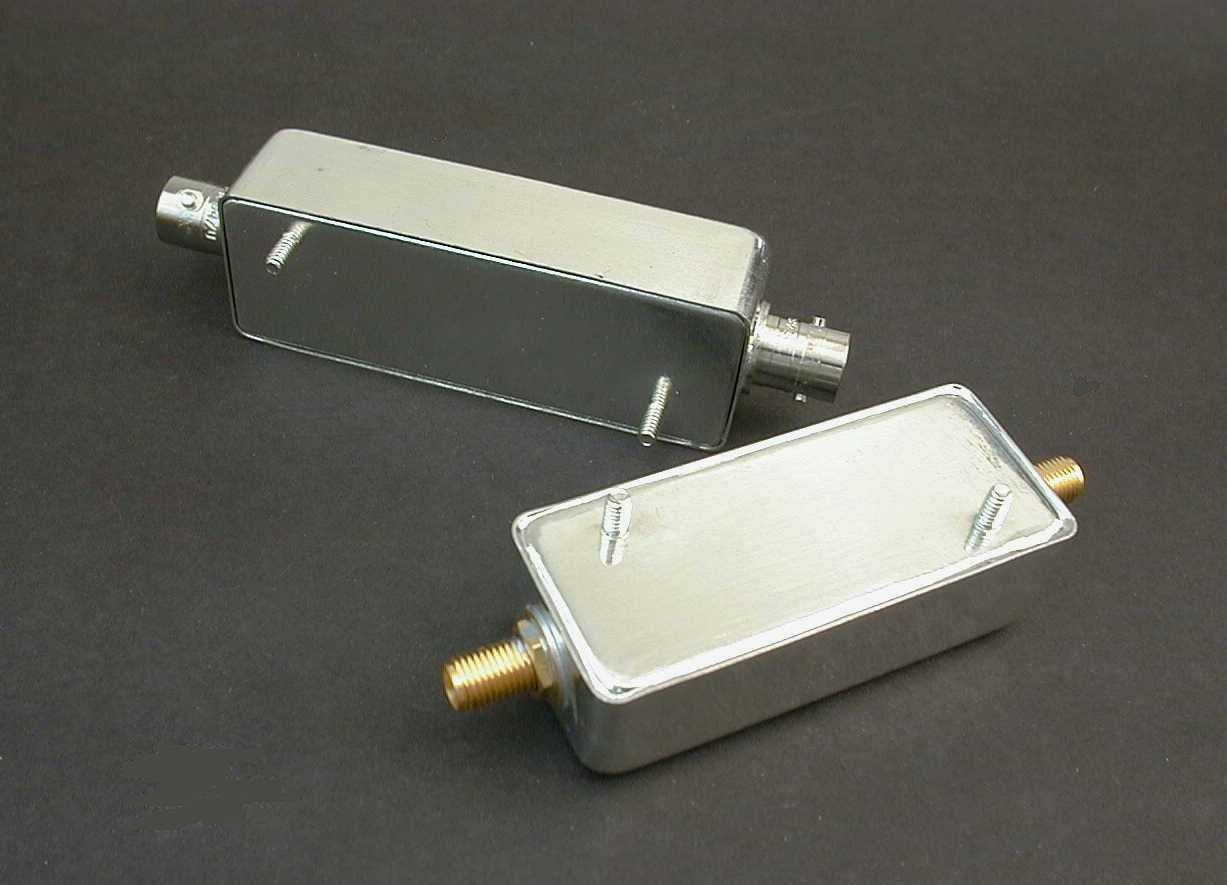

Case

Various (download the pdf sheet for details)

Operating Temperature

-20 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

400 MHz / 0 .2 dB

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
