FN-1834W

Name: FN-1834W - Filtronetics
SKU: FN-1834W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1834W

Frequency

400 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

20 MHz / 2 dB Max

Stop Bandwidth

70 MHz / 15 dB Min

Ripple

0.3 dB Max

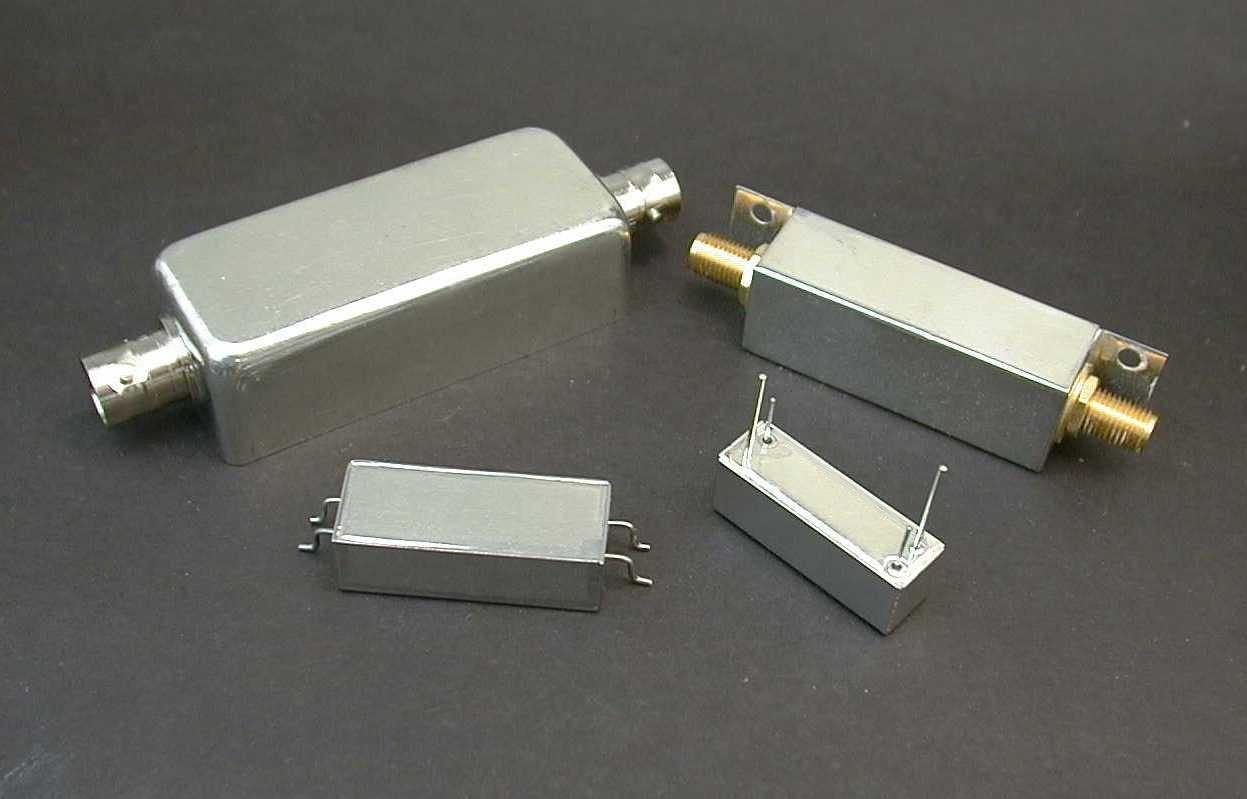

Case

Various (download the pdf sheet for details)

Operating Temperature

-20 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
