FN-1775W

Name: FN-1775W - Filtronetics
SKU: FN-1775W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1775W

Frequency

70 MHz

Insertion Loss

5.0 dB Max

Pass Bandwidth

±3.5 KHz / 3 dB Max

Stop Bandwidth

20 KHz / 30 dB Min // 30 KHz / 60 dB Min

Ripple

1.0 dB Max

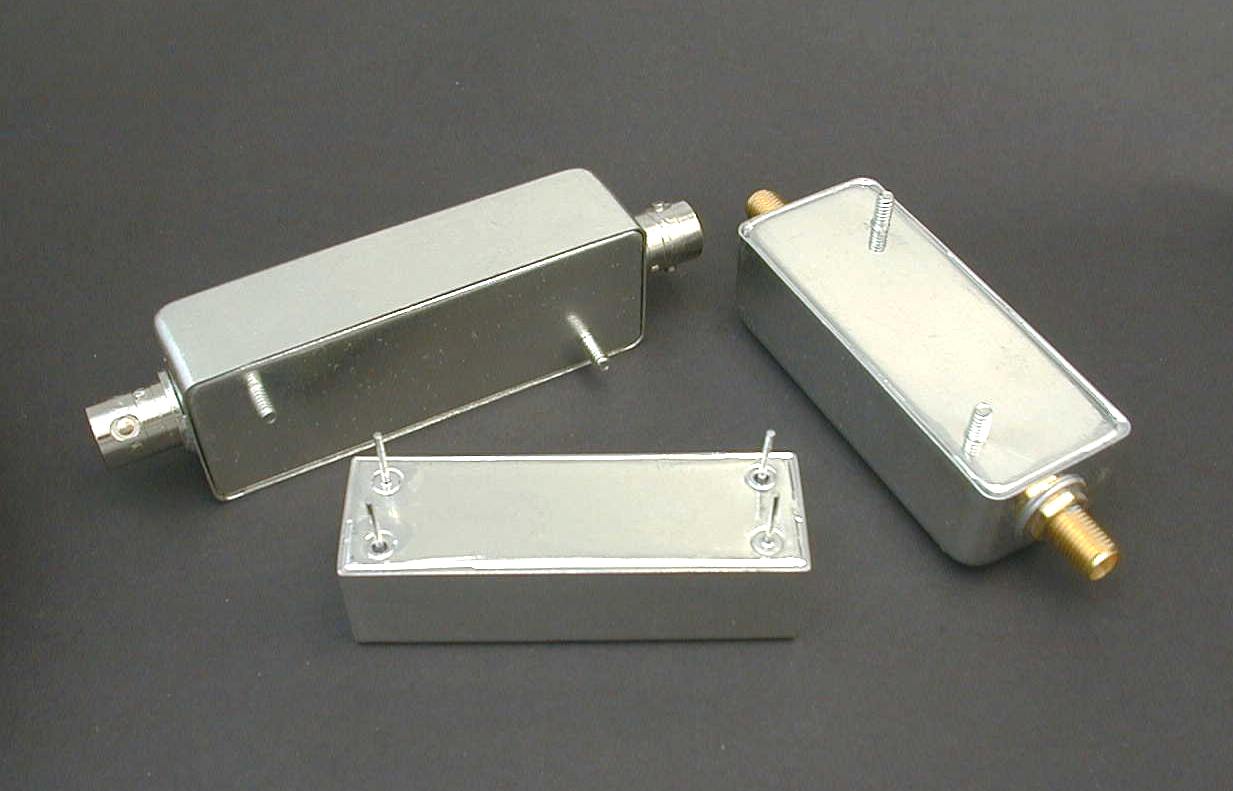

Case

Various (download the pdf sheet for details)

Operating Temperature

+15 to +35°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
