FN-1368W

Name: FN-1368W - Filtronetics
SKU: FN-1368W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-1368W

Frequency

109 MHz

Insertion Loss

4.5 dB Max

Pass Bandwidth

30 KHz / 3 dB Max

Stop Bandwidth

300 KHz / 60 dB Min

Ripple

0.5 dB Max

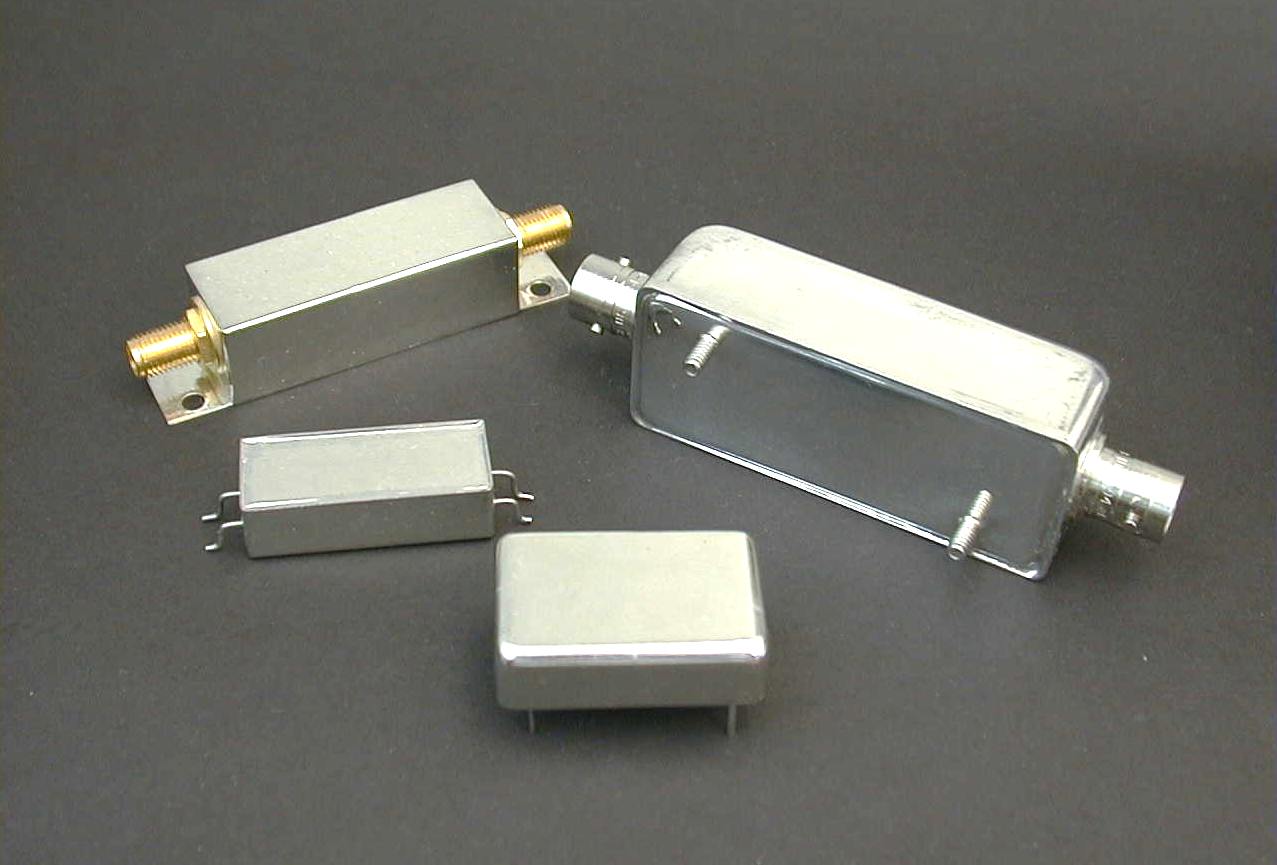

Case

Various (download the pdf sheet for details)

Operating Temperature

'-40 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
