FN-1289W

Name: FN-1289W - Filtronetics
SKU: FN-1289W
Availability: InStock

Filters - Lowpass Filters

Capabilities

Model Number:

FN-1289W

Frequency

200 MHz

Insertion Loss

0.5 dB Max

Pass Bandwidth

Stop Bandwidth

300 MHz / 20 dB Min // 400~500 MHz / 40 dB Min // 500~1000 MHz / 30 dB Min

Ripple

±0.5 dB Max

Case

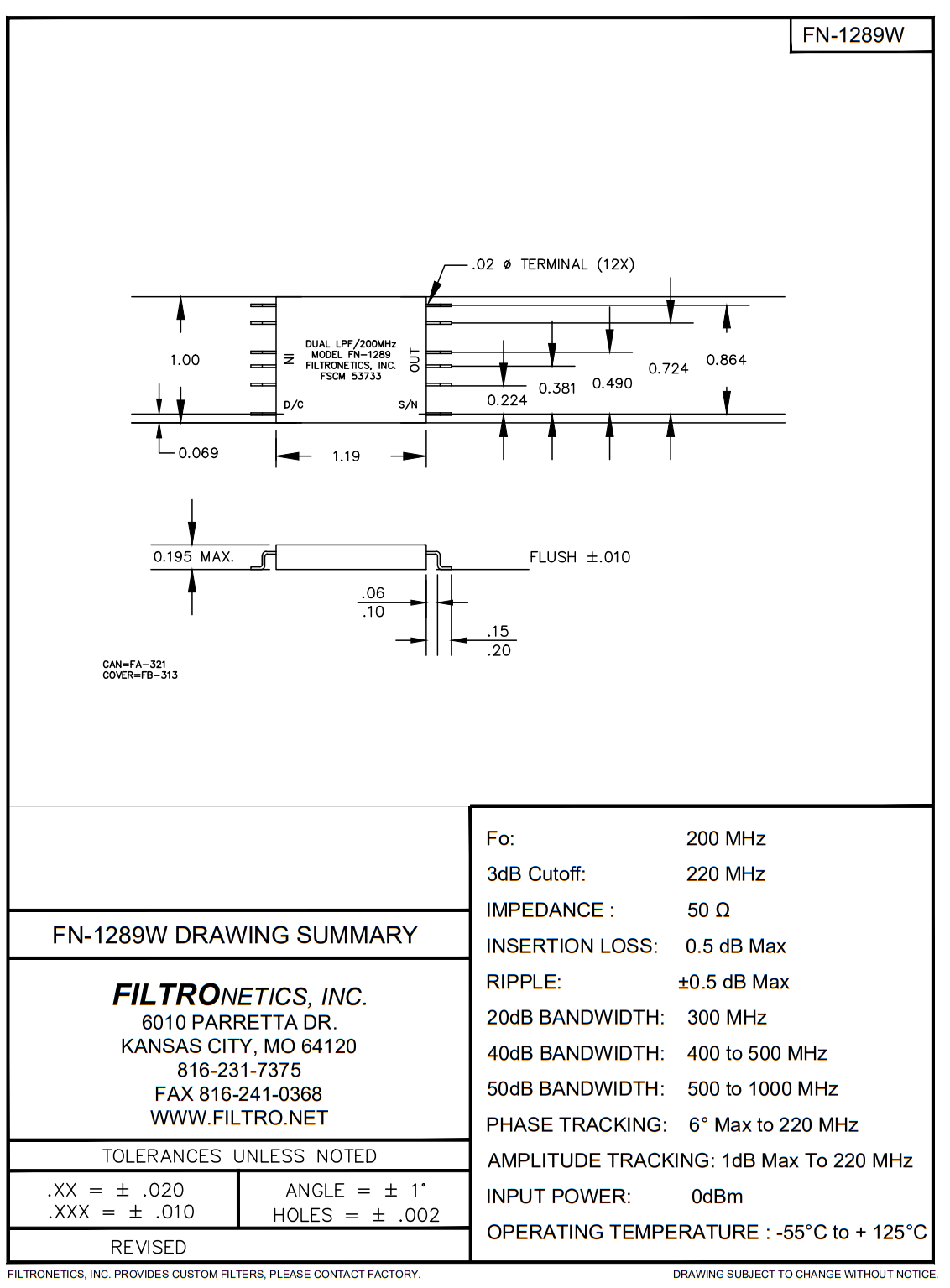

Various (download the pdf sheet for details)

Operating Temperature

-55 to +125°C

Poles

Impedance

50 Ohms

Cutoff Frequency

220 MHz

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Lowpass

Logic

Sort

Type
