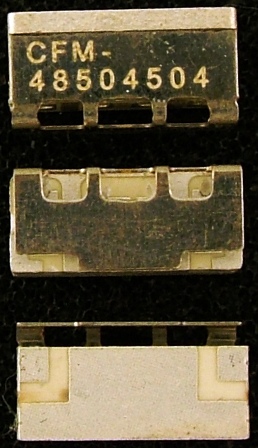

CFM-48504504

Name: CFM-48504504 - Filtronetics
SKU: CFM-48504504
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-48504504

Frequency

4850 MHz

Insertion Loss

1.2 dB Max

Pass Bandwidth

4625 ~ 5075 MHz / 1 dB Max

Stop Bandwidth

At 5400 MHz / 20 dB Min // At 6100 MHz / 35 dB Min

Ripple

1.0 dB Max

Case

11 x 5.8 x 5.1 mm (SMD)

Operating Temperature

-20 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
