CFM-35750504

Name: CFM-35750504 - Filtronetics
SKU: CFM-35750504
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-35750504

Frequency

3575 MHz

Insertion Loss

3.7 dB Max

Pass Bandwidth

±25 MHz / 3 dB Max

Stop Bandwidth

3450MHz ~ 3500MHz / 23 dB Min

Ripple

1.0 dB Max

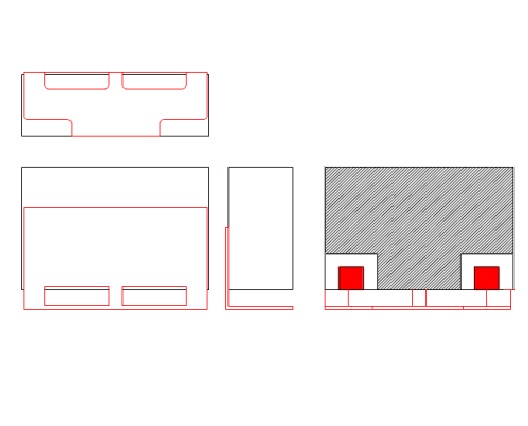

Case

10.8 x 8.7 x 4.5 mm (SMD)

Operating Temperature

-30 to +75°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
