CFM-34250503AN

Name: CFM-34250503AN - Filtronetics
SKU: CFM-34250503AN
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

CFM-34250503AN

Frequency

3425 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

50 MHz / 2 dB Max

Stop Bandwidth

At 3225 MHz / 25 dB Min // At 3500 MHz / 8 dB Min // At 3625 MHz / 25 dB Min

Ripple

1.0 dB Max

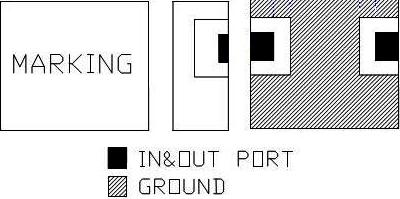

Case

8.30 x 7 x 3 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
