CFM-24500504B

Name: CFM-24500504B - Filtronetics
SKU: CFM-24500504B
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-24500504B

Frequency

2450 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

2425 ~ 2475 MHz / 2 dB Max

Stop Bandwidth

Various (download the pdf sheet for details)

Ripple

1.0 dB Max

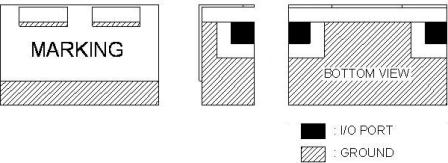

Case

11 x 6.95 x 3.85 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
