CFM-14000506

Name: CFM-14000506 - Filtronetics
SKU: CFM-14000506
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

CFM-14000506

Frequency

1400 MHz

Insertion Loss

4.0 dB Max

Pass Bandwidth

±25 MHz / 3 dB Max

Stop Bandwidth

1500~1800MHz / 45 dB Min // 1100~1300MHz / 35 dB min

Ripple

1.0 dB Max in Pass Band

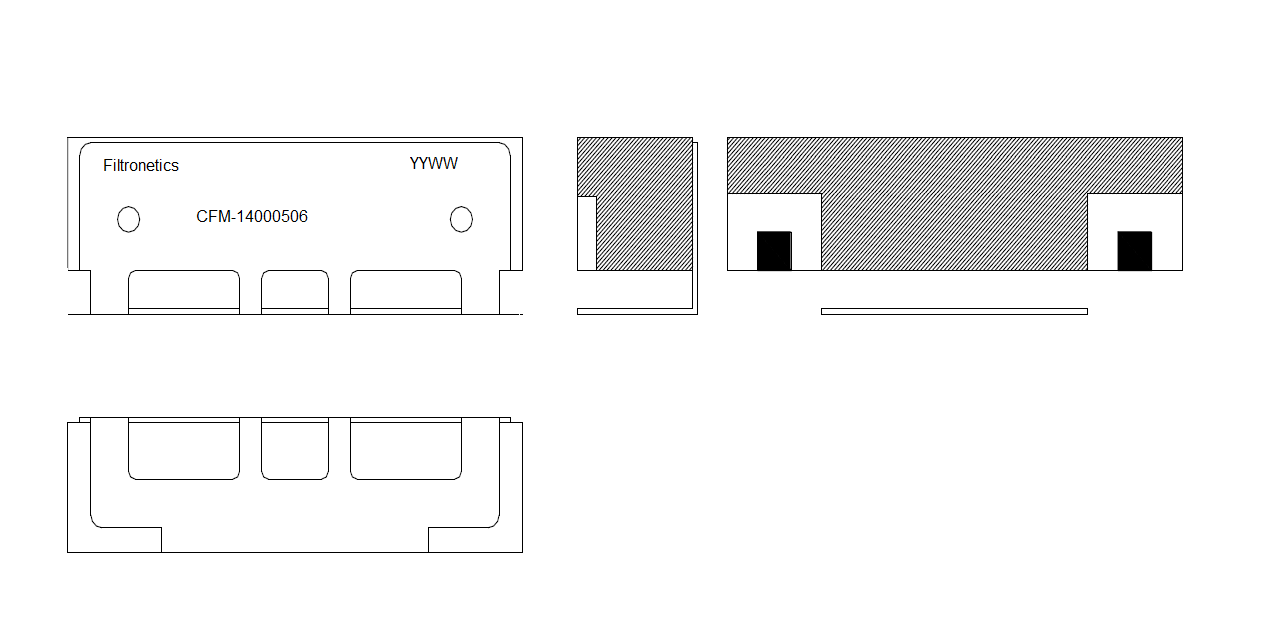

Case

20.5 x 6.90 x 5.4 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
