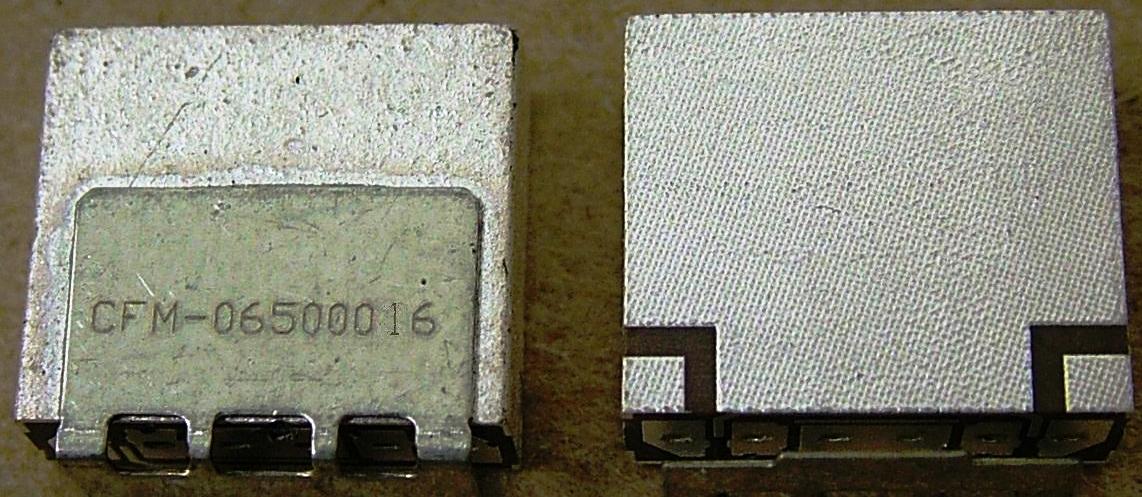

CFM-06500016

Name: CFM-06500016 - Filtronetics
SKU: CFM-06500016
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-06500016

Frequency

650 MHz

Insertion Loss

7.5 dB Max

Pass Bandwidth

1.2 MHz / 1 dB Max

Stop Bandwidth

15 MHz / 40 dB Min

Ripple

0.8 dB Max

Case

13.05 X 12.4 X 4.95 mm (SMD)

Operating Temperature

-20 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
