CFDM-0450047510

Name: CFDM-0450047510 - Filtronetics
SKU: CFDM-0045047510
Availability: InStock

Diplexer Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFDM-0450047510

Frequency

Insertion Loss

5.0 dB Max

Pass Bandwidth

Stop Bandwidth

470~480MHz / 45 dB Min // 445~455MHz / 45 dB min

Ripple

2.0 dB Max (in Pass Band)

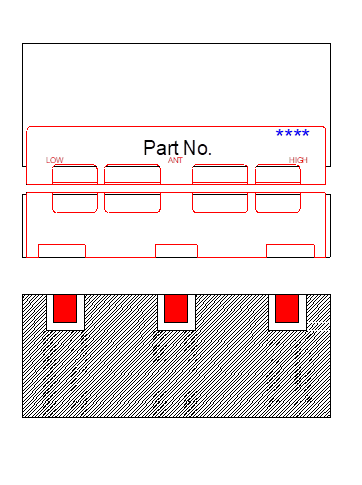

Case

40.2 x 17.7 x 8.2 mm (SMD)

Operating Temperature

-20 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

475 MHz

High Pass Bandwidth

±5.0 MHz / 3.0 dB Max

Load

Low Center Frequency

450 MHz

Low Pass Bandwidth

±5.0 MHz / 3.0 dB Max

Rise/Fall Time

Size

Type of filter

Diplexer

Logic

Sort

Type
