CF-70005004

Name: CF-70005004 - Filtronetics
SKU: CF-70005004
Availability: InStock

Bandpass Filters - Filters

Available smaller without LP Roofing Filters, see CFM-70005004

Capabilities

Model Number:

CF-70005004

Frequency

7000 MHz

Insertion Loss

3.5 dB Max

Pass Bandwidth

±250 MHz / 3.0 dB Max

Stop Bandwidth

5800MHz / 35 dB Min // 230~3000MHz / 60 dB Min // 8200MHz / 35 dB Min // 6000MHz / 40 dB Min // 8000 MHz / 40 dB Min // 11000~18000 / 35 dB Min

Ripple

0.5 dB Max

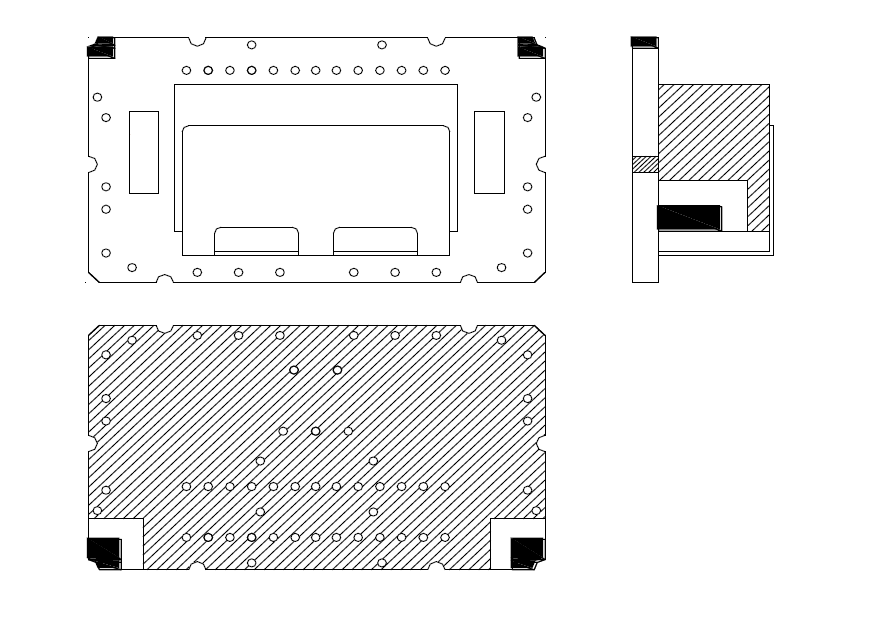

Case

21 x 12 x 5mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
