CF-51701606A

Name: CF-51701606A - Filtronetics
SKU: CF-51701606A
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-51701606A

Frequency

5170 MHz

Insertion Loss

3.0 dB Max at Fo

Pass Bandwidth

±80 MHz (5090 ~ 5250 MHz) / 1 dB Max

Stop Bandwidth

4000~4870 MHz / 30 dB Min // 5470~6000 MHz / 30 dB Min

Ripple

1.0 dB Max in BW

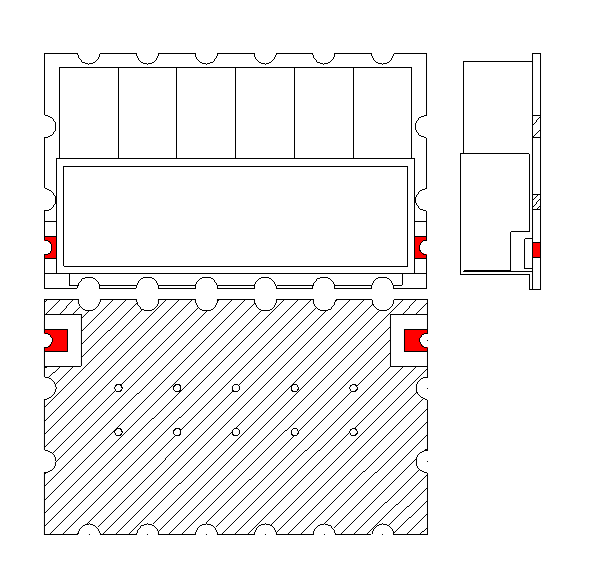

Case

26 x 16 x 5.5 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
