CF-29951003

Name: CF-29951003 - Filtronetics
SKU: CF-29951003
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-29951003

Frequency

2995 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

100 MHz / 3 dB Max

Stop Bandwidth

1200 MHz / 50 dBc Min

Ripple

1 dB Max

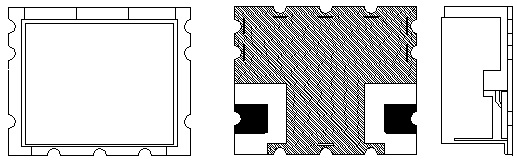

Case

14.0 x 10.6 x 5.5 mm (SMD)

Operating Temperature

-30 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
