CF-29700205

Name: CF-29700205 - Filtronetics
SKU: CF-29700205
Availability: InStock

Bandpass Filters - Filters

No Pure Tin Compliant

Capabilities

Model Number:

CF-29700205

Frequency

2970 MHz

Insertion Loss

6.5 dB Max at Fo 3.0 dB Max

Pass Bandwidth

20 MHz / 1.0 dB Max

Stop Bandwidth

2900 MHz / 35 dB Min // 3020 MHz / 40 dB min // 3060 MHz / 37 dB Min

Ripple

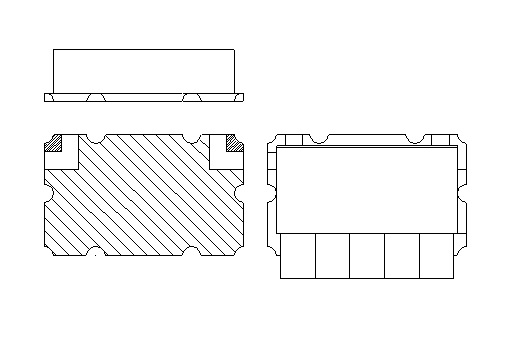

Case

17.28 x 13.0 x 4.5 mm (SMD)

Operating Temperature

-35 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
