CF-22505105

Name: CF-22505105 - Filtronetics
SKU: CF-22505105
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-22505105

Frequency

2250 MHz

Insertion Loss

1.2 dB Max

Pass Bandwidth

510 MHz / 1.0 dBc Max

Stop Bandwidth

At 3400 MHz / 60 dBc Min

Ripple

1.0 dB Max

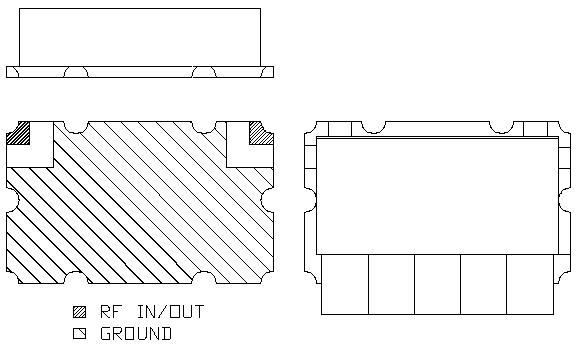

Case

17.28 x 13 x 4.5 mm (SMD)

Operating Temperature

-20 to +60°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
