CF-16002006A

Name: CF-16002006A - Filtronetics
SKU: CF-16002006A
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-16002006A

Frequency

1600 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

±100 MHz / 3.0 dB Max

Stop Bandwidth

1275 MHz / 50.0 dB Min // 1875 MHz / 45.0 dB Min

Ripple

1.0 dB Max in Pass Band

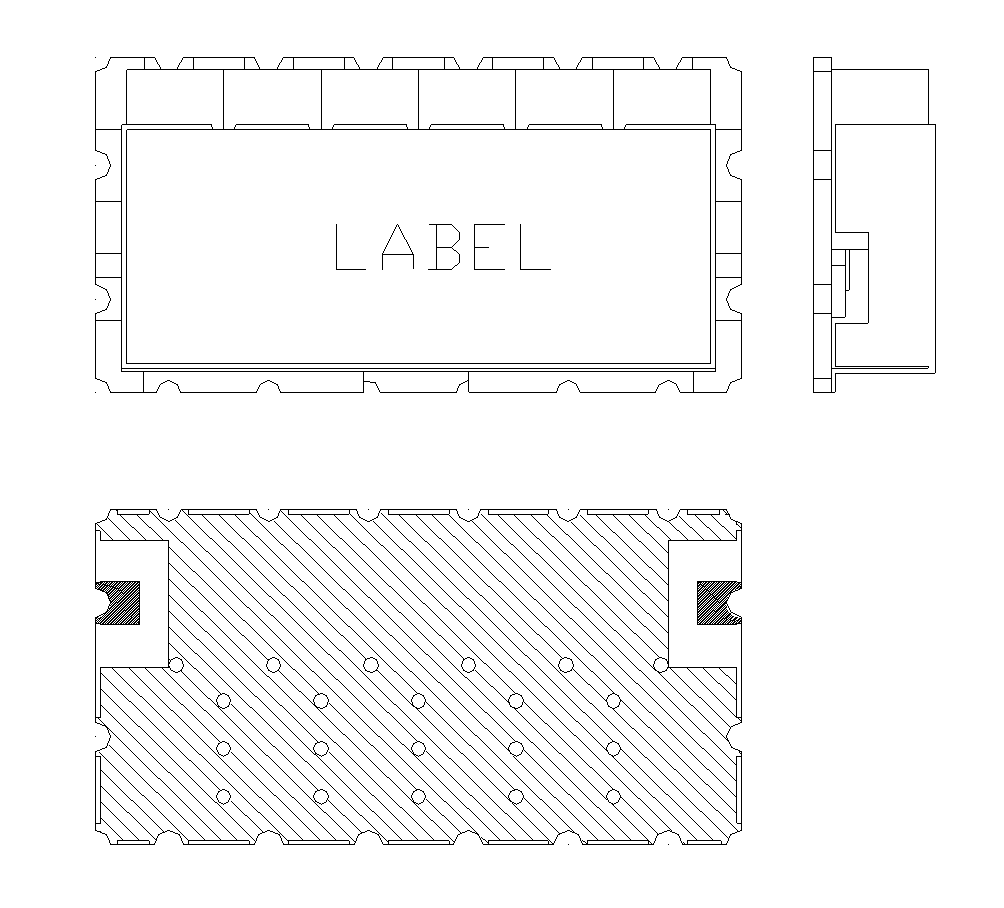

Case

26.5 x 14.0 x 5.5 mm (SMD)

Operating Temperature

-40 to +80°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
