CF-15002205

Name: CF-15002205 - Filtronetics
SKU: CF-15002205
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-15002205

Frequency

1500 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

±110 MHz / 3.0 dB Max

Stop Bandwidth

1310 MHz / 24 dB Min // 1690 MHz / 12 dB Min

Ripple

1.0 dB Max in Pass Band

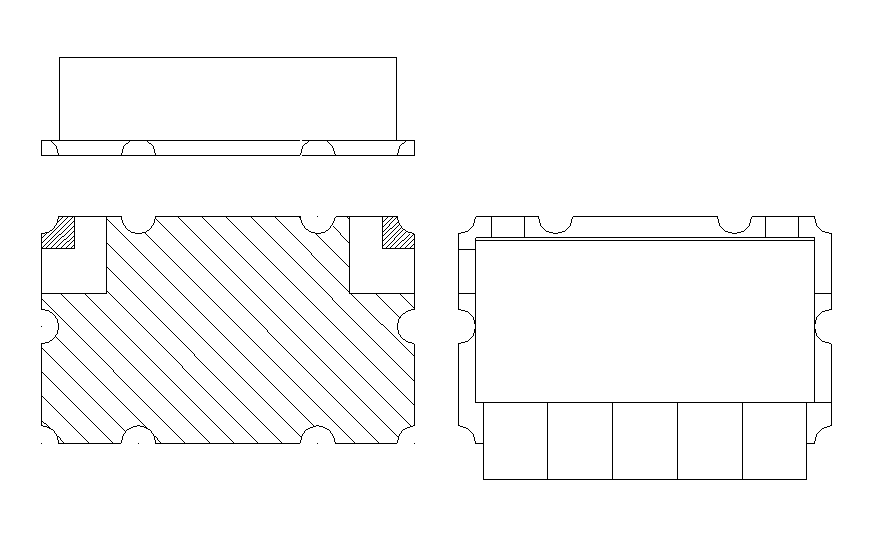

Case

17.28 x 13 x 4.5 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
