Model Number:
CF-13403005
Frequency
1340 MHz
Insertion Loss
3.0 dB max at Fo±150 MHz
Pass Bandwidth
±150 MHz (300 MHz) / 1 dB Max
Stop Bandwidth
At D.C. ~ 745 MHz / 50 dB min // At 1790 MHz / 30 dB min // At 1985 ~ 2600 MHz / 50 dB min
Ripple
1.0 dB Max At Fo±150 MHz

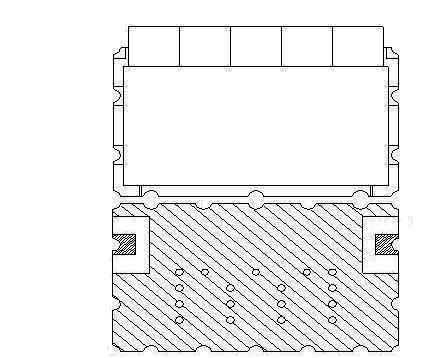

Case
22.4 x 16.5 x 5.5 mm (SMD)
Operating Temperature
-20 to +85°C
Poles
5
Impedance
50 Ohms
Cutoff Frequency
-
Frequency Range
-
High Center Frequency
-
High Pass Bandwidth
-
Load
-
Low Center Frequency
-
Low Pass Bandwidth
-
Rise/Fall Time
-
Size
-
Type of filter
Bandpass
