Model Number:
CF-13002005
Frequency
1300 MHz
Insertion Loss
3.0 dB max at Fo±100 MHz
Pass Bandwidth
±100 MHz (200 MHz) / 1 dB Max
Stop Bandwidth
At D.C. ~ 900 MHz / 50 dB min // At 1700 MHz / 39 dB min // At 1870 ~ 2800 MHz / 50 dB min
Ripple
-
Case

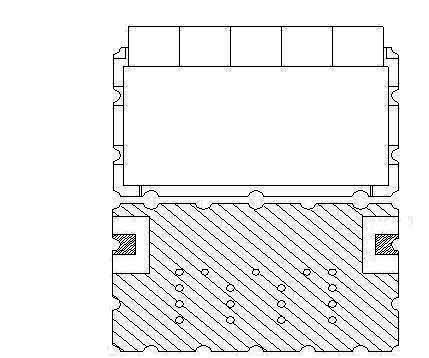

22.4 x 16.5 x 5.5 mm (SMD)
Operating Temperature
-40 to +86°C
Poles
5
Impedance
50 Ohms
Cutoff Frequency
-
Frequency Range
-
High Center Frequency
-
High Pass Bandwidth
-
Load
-
Low Center Frequency
-
Low Pass Bandwidth
-
Rise/Fall Time
-
Size
-
Type of filter
Bandpass
Logic
-
Sort
-
Type
-
Certifications
