CF-12800504B

Name: CF-12800504B - Filtronetics
SKU: CF-12800504B
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-12800504B

Frequency

1280 MHz

Insertion Loss

3.0 dB Max

Pass Bandwidth

50 MHz / 3.0 dB Max

Stop Bandwidth

1230 MHz / 24 dB Min // 1330 MHz / 19 dB Min

Ripple

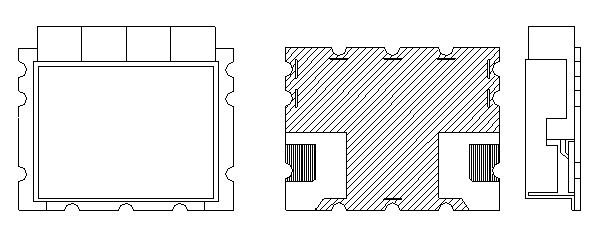

Case

12.5 x 14.0 x 4.3mm (SMD)

Operating Temperature

-35 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
