CF-12002306

Name: CF-12002306 - Filtronetics
SKU: CF-12002306
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-12002306

Frequency

1200 MHz

Insertion Loss

2.0 dB Max

Pass Bandwidth

±115 MHz / 3.0 dB Max

Stop Bandwidth

DC ~ 700MHz / 45 dB Min // 1700 ~ 2400MHz / 45 dB Min

Ripple

1.0 dB Max in Pass Band

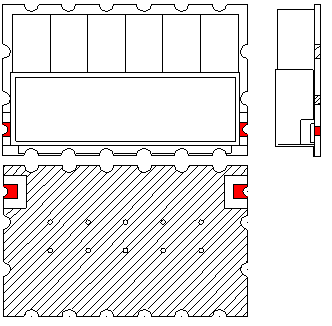

Case

26.0 x 16.0 x 5.5 (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
