CF-12000355D

Name: CF-12000355D - Filtronetics
SKU: CF-12000355D
Availability: InStock

Bandpass Filters - Filters

No Pure Tin Compliant

Capabilities

Model Number:

CF-12000355D

Frequency

1200.0 MHz

Insertion Loss

2.7 dB Max

Pass Bandwidth

±20 MHz / 3.0 dB Max

Stop Bandwidth

Fo -120 MHz / 58 dB Min // Fo +120 MHz / 54 dB Min // Fo -200MHz / 70 dB Min // Fo +200 MHz / 70 dB Min

Ripple

1.0 dB Max in Pass Band

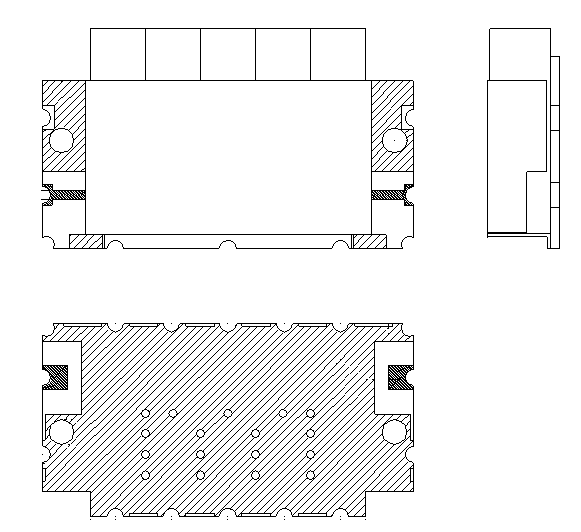

Case

27 x 16 x 5.5 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
