CF-09470154L

Name: CF-09470154L - Filtronetics
SKU: CF-09470154L
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

CF-09470154L

Frequency

947.50 MHz

Insertion Loss

3.5 dB Max

Pass Bandwidth

15 MHz / 3 dB max

Stop Bandwidth

80 MHz / 40 dB Min

Ripple

1.0 dB Max

Case

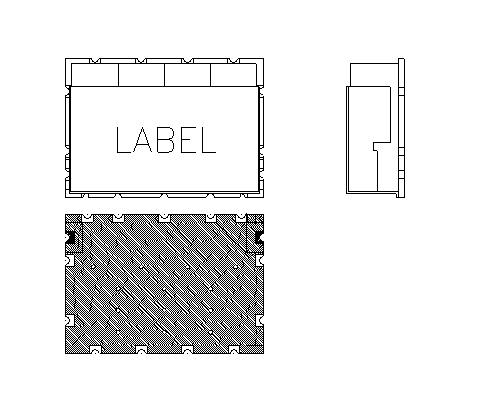

CFSL 25.65 x 16.99 x 7.5 mm (SMD)

Operating Temperature

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
