CF-08360254L

Name: CF-08360254L - Filtronetics
SKU: CF-08360254L
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-08360254L

Frequency

836.5 MHz

Insertion Loss

2.5 dB Max at Fo

Pass Bandwidth

±12.5 MHz / 3.0 dB Max

Stop Bandwidth

65 MHz / 22 dB Min

Ripple

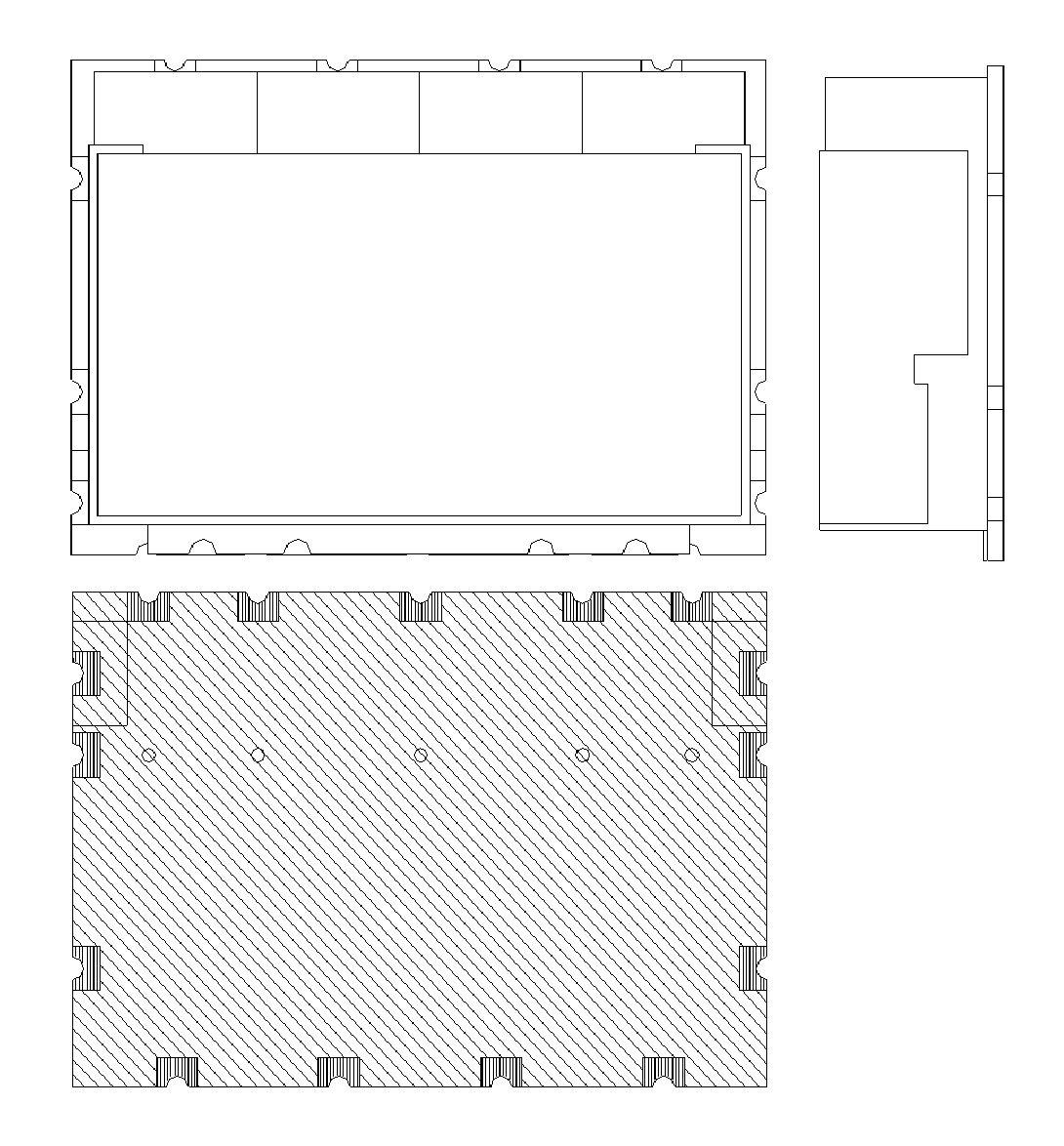

Case

1.010 x 0.699 x 0.295 in (SMD)

Operating Temperature

-35 to +75°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
