CF-07560263

Name: CF-07560263 - Filtronetics
SKU: CF-07560263
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

CF-07560263

Frequency

756 MHz

Insertion Loss

2.5 dB Max within Fo±13 MHz

Pass Bandwidth

26 MHz / 1.0 dB Max

Stop Bandwidth

400 MHz / 60 dB Min

Ripple

0.6 dB Max within Fo±13 MHz

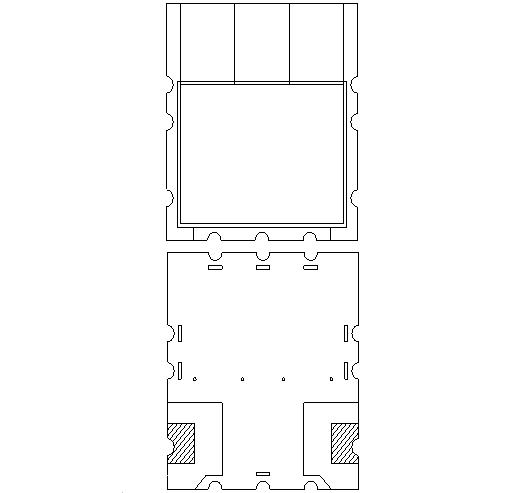

Case

14 x 14 x 5.5 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
