CF-06661005

Name: CF-06661005 - Filtronetics
SKU: CF-06661005
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-06661005

Frequency

666 MHz

Insertion Loss

2.0 dB Max at Fo

Pass Bandwidth

±50 MHz / 1.5 dBc Max

Stop Bandwidth

800 MHz / 40 dBc Min // 860~1000 MHz / 60 dBc Min // DC~180 MHz / 60 dBc Min

Ripple

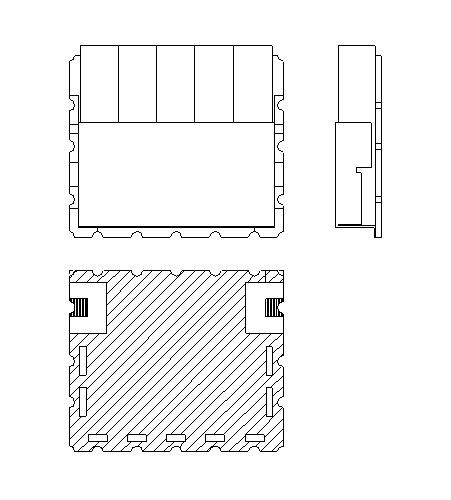

Case

22.4 x 20.0 x 5.5 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
