CF-05000204

Name: CF-05000204 - Filtronetics
SKU: CF-05000204
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-05000204

Frequency

500 MHz

Insertion Loss

2.5 dB Max at Fo

Pass Bandwidth

±10 MHz / 3.0 dB Max

Stop Bandwidth

DC ~ 440MHz / 45 dBc Min // 560 ~ 1000MHz / 45 dBc Min

Ripple

1.0 dB Max in Pass Band

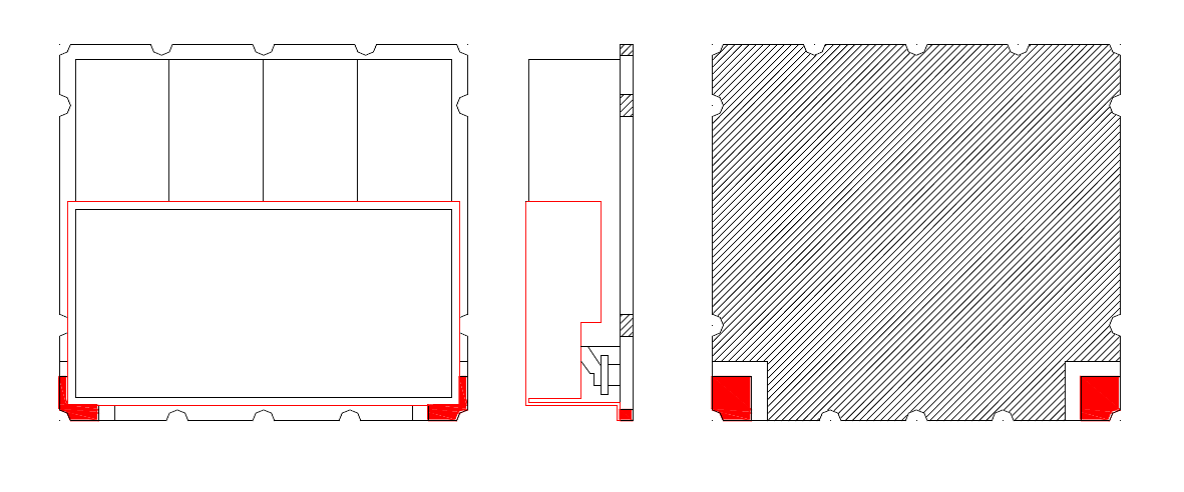

Case

26.0 x 24.0 x 7.5 mm (SMD)

Operating Temperature

-10 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
