CF-03500053

Name: CF-03500053 - Filtronetics
SKU: CF-03500053
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CF-03500053

Frequency

350 MHz

Insertion Loss

3.0 dB Max in Passband

Pass Bandwidth

5.0 MHz / 1.0 dB Max

Stop Bandwidth

250 MHz / 50 dB Min // 450 MHz / 50 dB Min

Ripple

1.0 dB Max in Pass Band

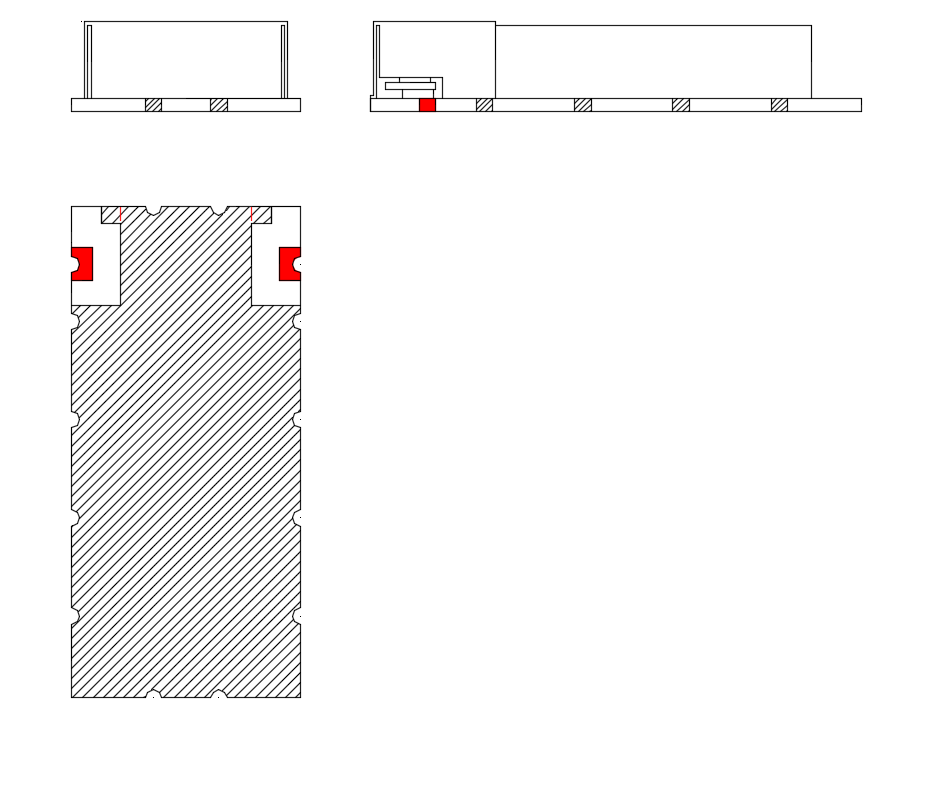

Case

14.0 x 30.0 x 5.5mm (SMD)

Operating Temperature

'-40 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
