CF-03250105

Name: CF-03250105 - Filtronetics
SKU: CF-03250105
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Also available in SMA, See FNP-1483

Capabilities

Model Number:

CF-03250105

Frequency

325.0 MHz

Insertion Loss

2.0 dB Max within Fc ± 2.5 MHz

Pass Bandwidth

10 MHz / 3.0 dB Max

Stop Bandwidth

DC ~ 300MHz / 37 dBc Min // 345 ~ 600MHz / dBc Min

Ripple

1.0 dB Max within Fc ± 2.5 MHz

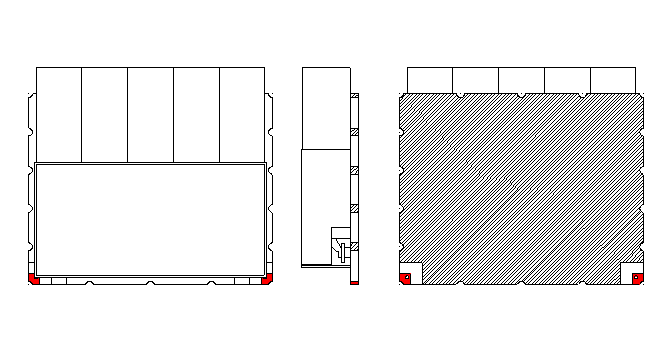

Case

32.0 x 28.5 x 7.5 mm (SMD)

Operating Temperature

-30 to +75°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
